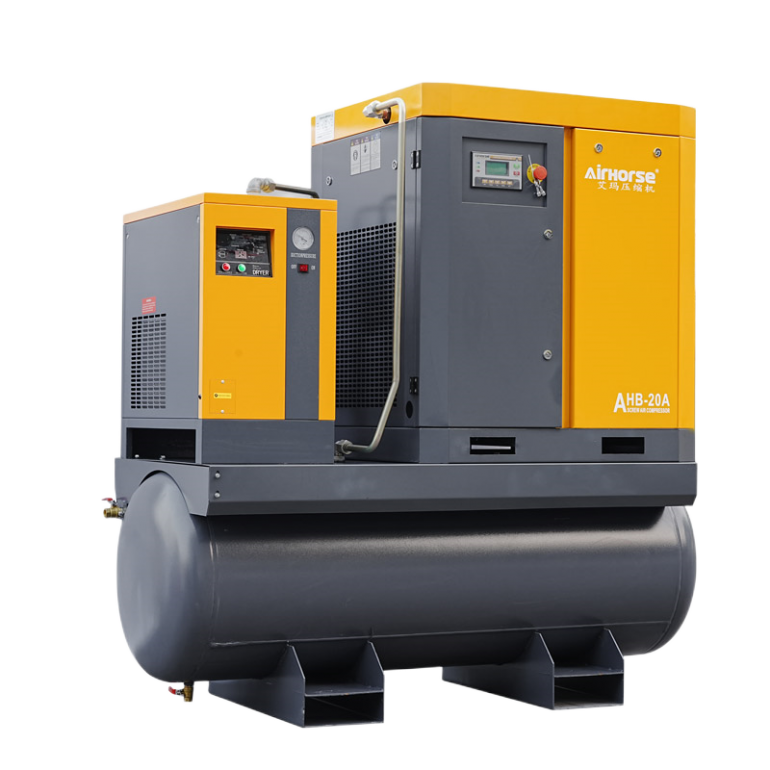

Tank, Dryer, Filter mounted Screw Compressor
Tank Dryer Filter Mounted Screw Compressor is an all-in-one solution designed for industries that require stable and high-quality compressed air. The system integrates a screw compressor, air tank, dryer, and filtration unit into one compact package, providing space savings, easy installation, and immediate operational readiness. This integrated solution efficiently removes moisture and contaminants, improving equipment reliability and ensuring clean compressed air for demanding applications.
The Total Air System incorporates only the highest quality components to ensure that both system efficiency and productivity are maximized. A high-efficiency compressor room without the hassle, complexity, and costs of the traditional compressor room. Total Air System packages come fully equipped with:
- A high-efficiency rotary screw air compressor
- An energy-saving cycling refrigerated air dryer
- A high-efficiency coalescing filter
- A high-efficiency particulate filter
- An integral air receiver storage tank
- Integrated compressor and dryer controls
- Low-pressure drop piping
| Tank, Dryer, Filter mounted screw compressor (4-in-1 type) | |||||||||
| Model | Motor power | Free air deliverу | Free air delivery | Discharge pressure | Tank volume | Electricity | Weight | Size | |
| (KW) | (HP) | (m³/min) | (CFM) | (MPa) | (L) | (V/ph/Hz) | (KG) | (mm) | |
| AHB-7A | 5.5 | 7.5 | 0.75 | 27 | 0.8 | 300 | 380/3/50 | 410 | 1900*700*1300 |
| AHB-10A | 7.5 | 10 | 1.1 | 39 | 0.8 | 300 | 380/3/50 | 425 | 1900*730*1520 |
| AHB-15A | 11 | 15 | 1.5 | 53 | 0.8 | 300 | 380/3/50 | 475 | 1900*700*1630 |
| AHB-20A | 15 | 20 | 2.3 | 81 | 0.8 | 500 | 380/3/50 | 540 | 2000*800*1800 |
Why Choose Us?
Control
Shipment
Service
AirHorse is an internationally renowned manufacturer of screw air compressors, please contact us for more information on air compressors. For a long time, we have provided you with high-quality air compression services.
