Screw Vacuum Pump

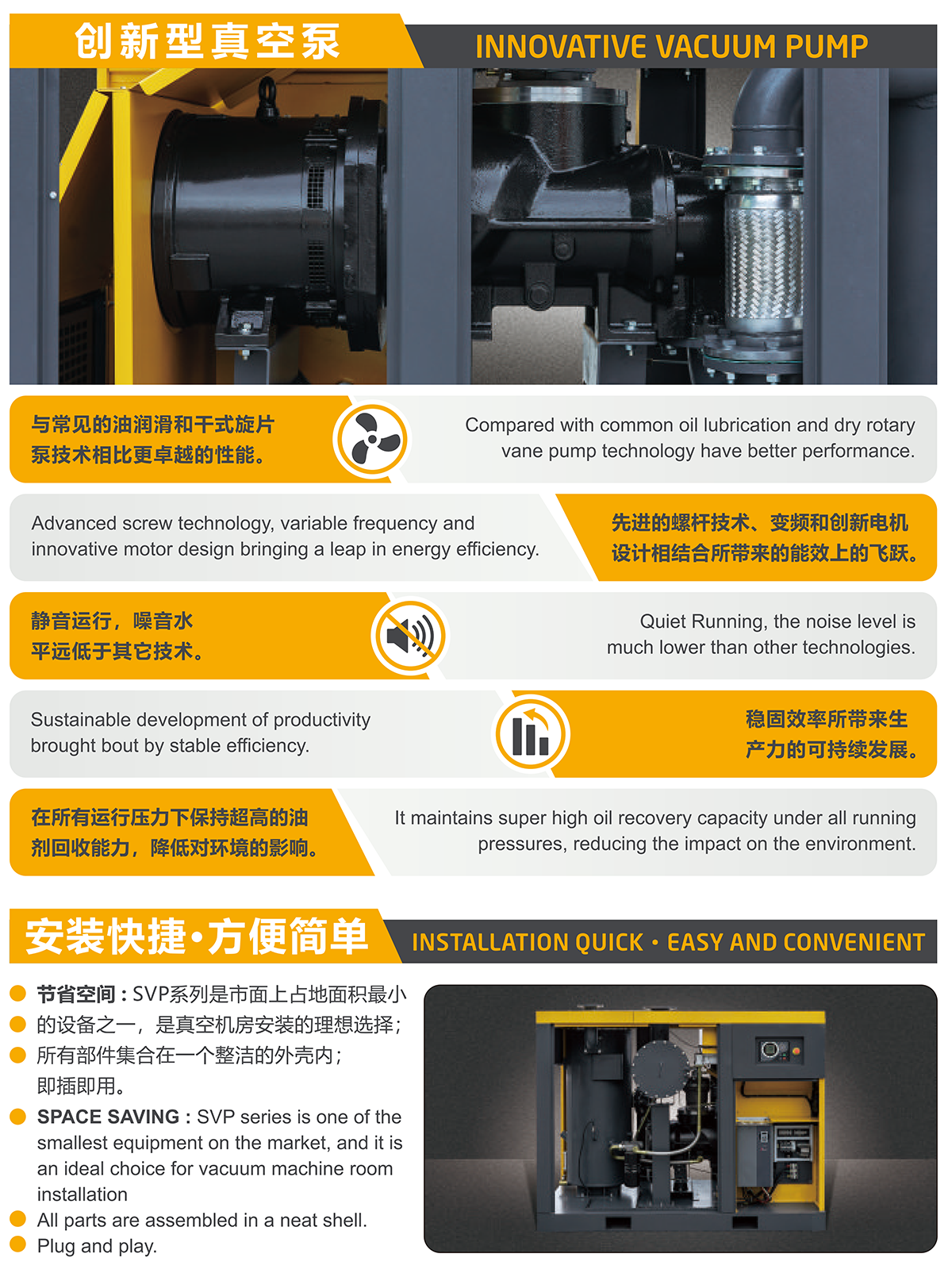

In Quiet Running, the noise level is much lower than in other technologies.
Sustainable development of productivity brought bout by stable efficiency.
Compared with common oil lubrication and dry rotary vane pump technology have better performance.
Advanced screw technology, variable frequency, and innovative motor design bring a leap in energy efficiency.
It maintains super high oil recovery capacity under all running pressures, reducing the impact on the environment.
SPACE SAVING: SVP series is one of the smallest equipment on the market, and it is an ideal choice for vacuum machine room installation All parts are assembled in a neat shell. Plug and play.

Product Details

Technical Parameters

Catalogue Download

SVP SERIES VACUUM PUMP TECHNICAL PARAMETERS LIST
Model	Motor Power	Air Flow (Pumping Speed)	Ultimate Vacuum	Import Pipe Diameter	Outlet Pipe Diameter	Size	Weight
Model	(KW)	(m³/h)	(pa)	(DN)	(DN)	(mm)	(KG)
SVP7-10	7.5	588	60	80	65	15008801460	805
SVP11-12	11	768	60	100	65	18509201493	1040
SVP15-15	15	912	60	100	65	18509201493	1040
SVP18-18	18.5	1092	60	150	100	200010001670	1280
SVP22-22	22	1320	60	150	100	200010001670	1280
SVP30-27	30	1620	60	150	100	230011201827	1910
SVP37-30	37	1850	60	150	100	230011201827	1910
SVP45-44	45	2640	60	200	150	286016502114	3500
SVP55-53	55	3830	60	200	150	286016502114	3500
SVP75-75	75	4560	60	250	200	330022502350	5200
SVP90-90	90	5400	60	250	200	330022502350	5200
