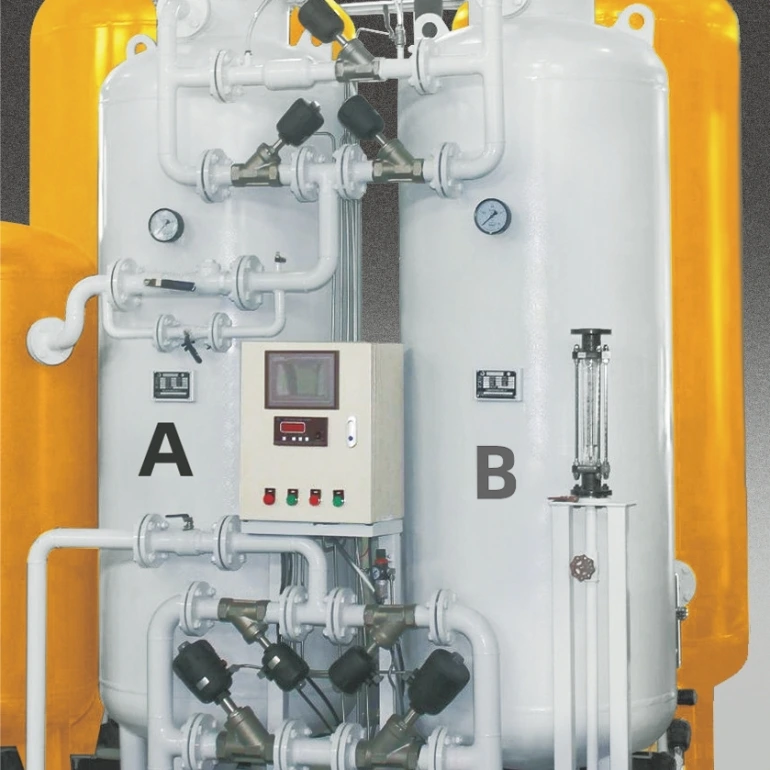

Nitrogen Generator
Nitrogen generator is advanced equipment designed to produce high-purity nitrogen directly on-site using air separation technology. These systems provide a reliable and cost-effective alternative to traditional nitrogen cylinder or liquid nitrogen supply.
Nitrogen generators are widely used in food packaging, metal processing, electronics, pharmaceuticals, chemical industries, and many other industrial applications where a continuous supply of nitrogen is required. On-site nitrogen production helps reduce operating costs, improve efficiency, and ensure uninterrupted production processes.
Modern nitrogen generators feature energy-efficient operation, automated control systems, stable performance, and easy maintenance for safe and reliable industrial use. We offer nitrogen generation solutions tailored to meet various industrial and commercial requirements.
| AHN-99 NITROGEN GENERATOR (NITROGEN PURITY 99%-99.99%) | ||||||
| Model | Air Flow (Nm³/h) | Air Consumption (Nm³/min) | Size L*W*H (mm) | Air Inlet (DN mm) | Air Outlet (DN mm) | Weight (kg) |
| AHN99-10 | 10 | 0.51 | 1500*1000*1650 | 15 | 15 | 580 |
| AHN99-20 | 20 | 1.02 | 1500*1000*1800 | 15 | 15 | 680 |
| AHN99-30 | 30 | 1.53 | 1800*1200*1650 | 25 | 15 | 740 |
| AHN99-40 | 40 | 2.04 | 2200*1400*1900 | 25 | 25 | 850 |
| AHN99-50 | 50 | 2.55 | 2200*1400*2100 | 25 | 25 | 980 |
| AHN99-60 | 60 | 3.07 | 2200*1500*2100 | 32 | 25 | 1130 |
| AHN99-80 | 80 | 4.09 | 2400*1600*2100 | 32 | 25 | 1420 |
| AHN99-100 | 100 | 5.11 | 2500*1800*2200 | 40 | 25 | 1790 |
| AHN99-120 | 120 | 6.13 | 2500*1800*2600 | 50 | 32 | 1950 |
| AHN99-150 | 150 | 7.66 | 2500*1800*2800 | 50 | 32 | 2420 |
| AHN99-200 | 200 | 10.22 | 3000*2000*2600 | 50 | 40 | 3060 |
| AHN99-250 | 250 | 12.77 | 3000*2500*2700 | 65 | 40 | 3850 |
| AHN99-300 | 300 | 15.33 | 3500*2500*2700 | 65 | 40 | 4500 |
| AHN99-350 | 350 | 17.88 | 3500*2700*2700 | 65 | 40 | 5025 |
| AHN99-400 | 400 | 20.44 | 3500*2700*3000 | 80 | 40 | 5625 |
| AHN99-500 | 500 | 25.55 | 3800*2900*3000 | 80 | 40 | 6750 |
| AHN99-600 | 600 | 30.66 | 4200*2900*3000 | 100 | 50 | 7200 |
| AHN99-800 | 800 | 40.88 | 5500*4000*3100 | 125 | 50 | 8100 |
