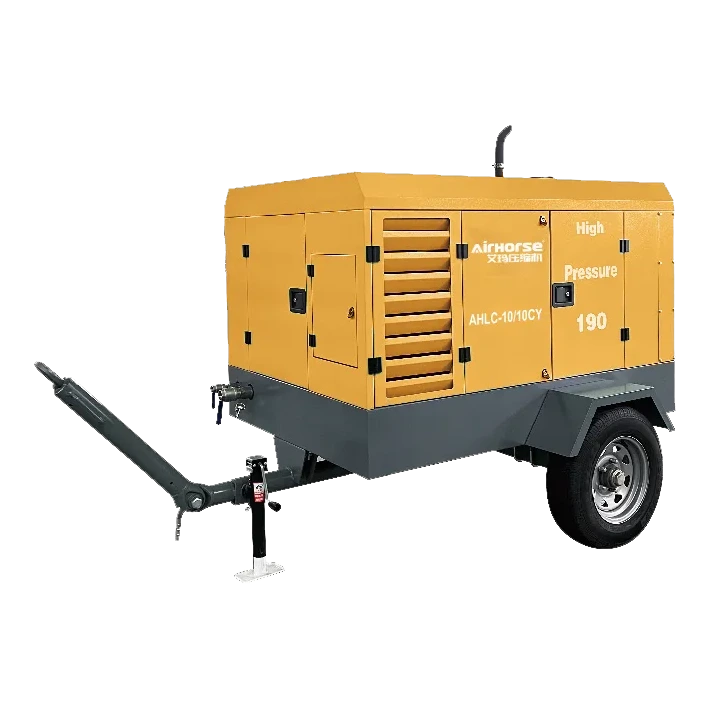

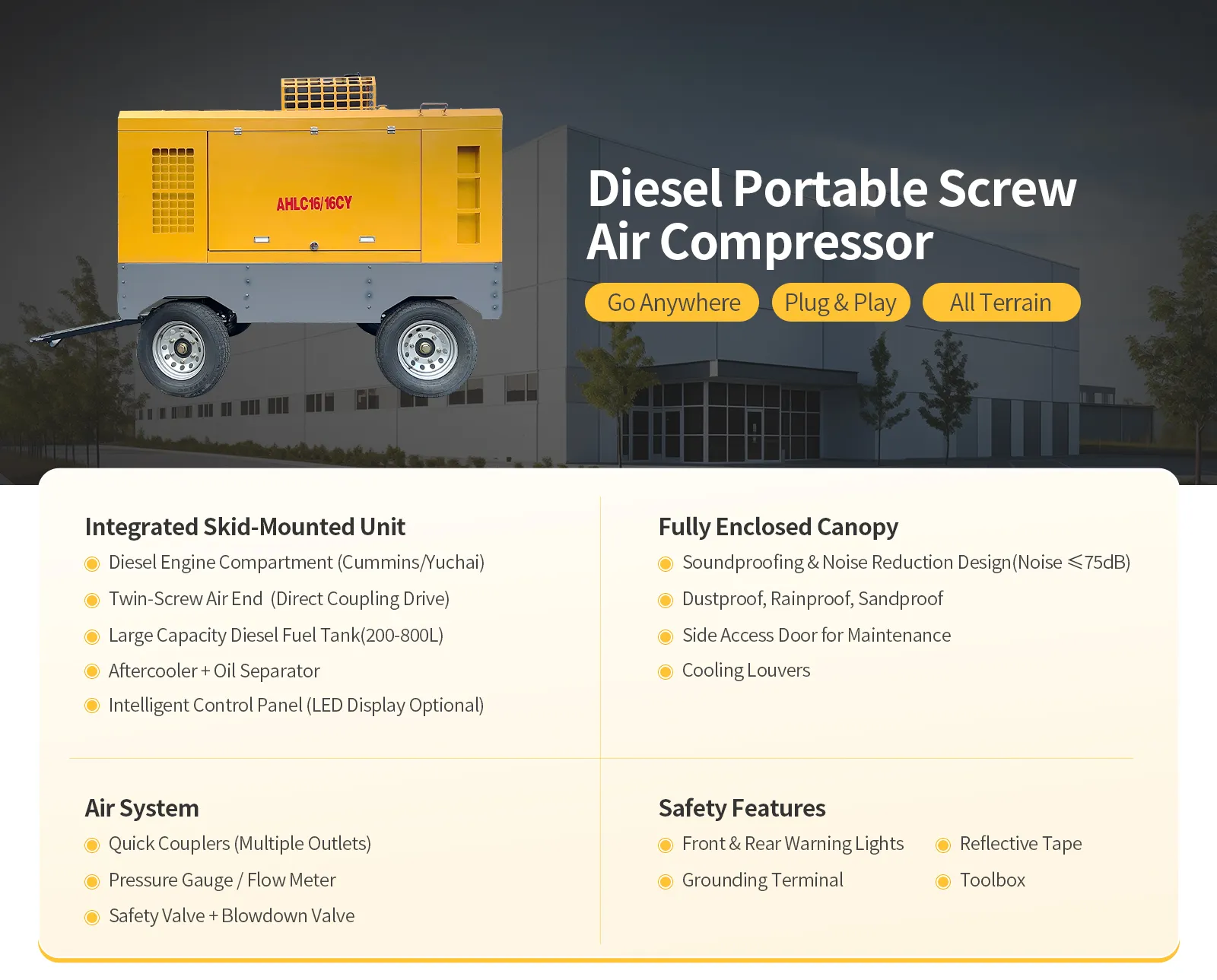

Diesel Portable Screw Air Compressor

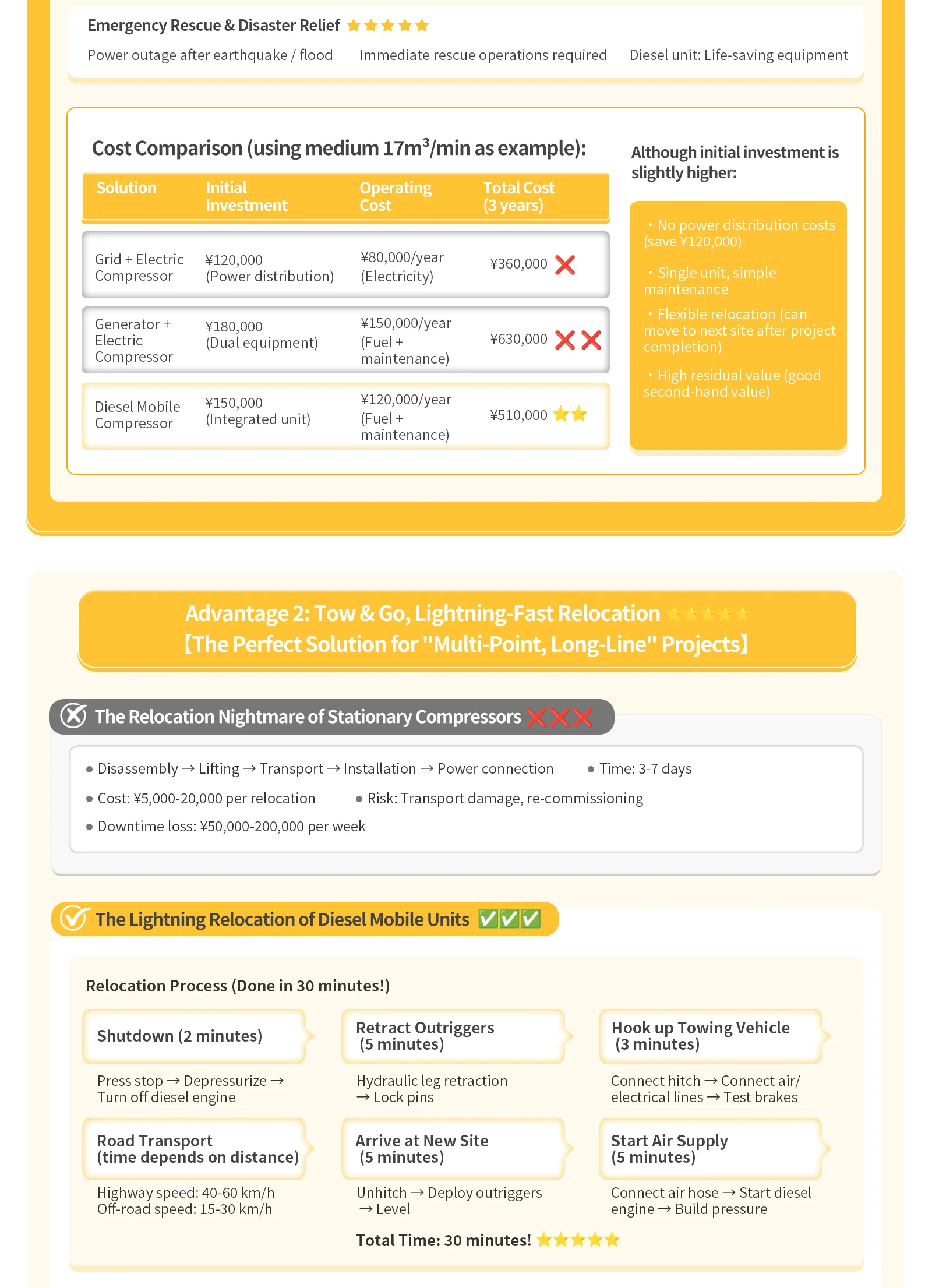

Diesel-powered portable screw air compressor — driven by a 30–550 kW engine — operates entirely off-grid. Mounted on a wheeled trailer, skid, or crawler chassis, it can be towed straight to the job, making it perfect for roadworks, tunnels, mines, oilfields, and disaster-relief sites scattered along long corridors. Moving it around on site takes nothing more than a pickup or small tractor; no cranes or additional power distribution are required.

Diesel mobile screw air compressor is one of the hot-selling series of Airhorse compressors; with its high efficiency and flexibility, it is loved by all users.
This series uses a six-cylinder diesel engine with a reversal head, which improves reliability, economy, and practicality, and has better comprehensive performance.

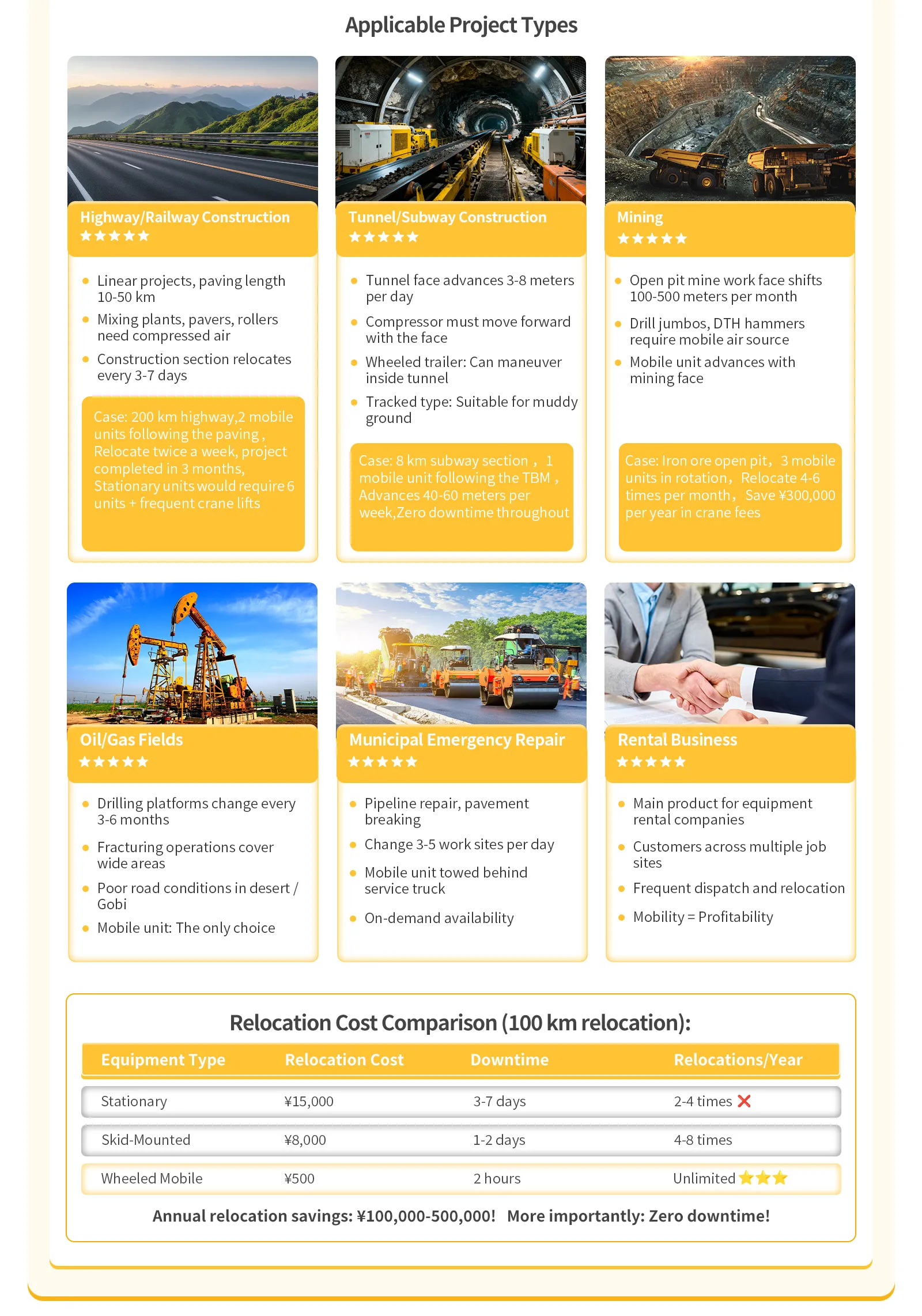

It is widely used in hydropower, railway, ship repair, mines, highways, jets, oil and gas fields, well drilling, municipal Engineering, optical cable laying and other industries.

Product Details

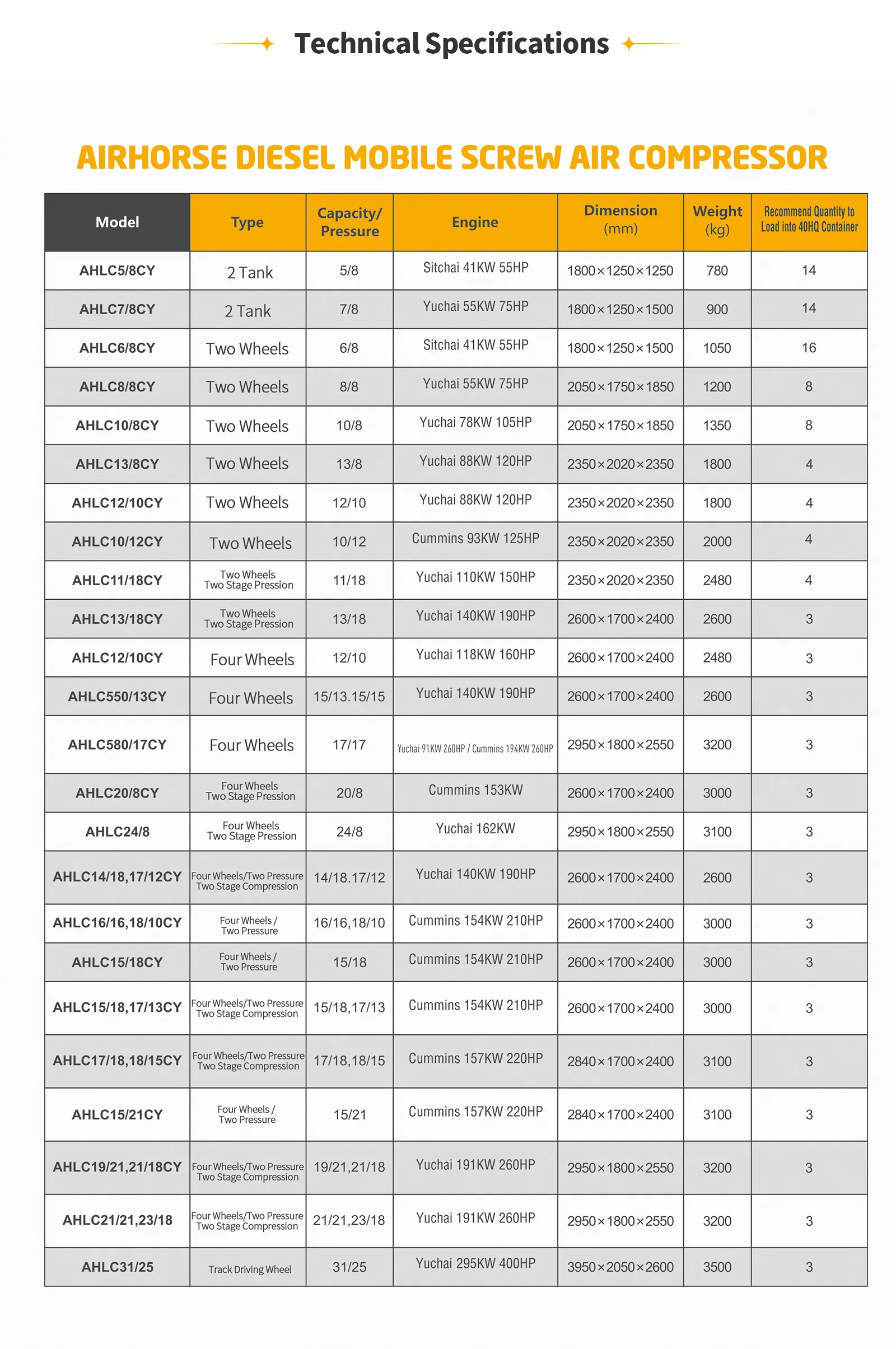

Technical Parameters

Catalogue Download

Model	Type	Capacity / Pressure	Engine	Dimension (mm)	Weight (kg)	Recommend Quantity to Load into 40HQ Container
AHLC5/8CY	2 Tank	5/8	Sitchai 41KW 55HP	1800×1250×1250	780	14
AHLC7/8CY	2 Tank	7/8	Yuchai 55KW 75HP	1800×1250×1500	900	14
AHLC6/8CY	Two Wheels	6/8	Sitchai 41KW 55HP	1800×1250×1500	1050	16
AHLC8/8CY	Two Wheels	8/8	Yuchai 55KW 75HP	2050×1750×1850	1200	8
AHLC10/8CY	Two Wheels	10/8	Yuchai 78KW 105HP	2050×1750×1850	1350	8
AHLC13/8CY	Two Wheels	13/8	Yuchai 88KW 120HP	2350×2020×2350	1800	4
AHLC12/10CY	Two Wheels	12/10	Yuchai 88KW 120HP	2350×2020×2350	1800	4
AHLC10/12CY	Two Wheels	10/12	Cummins 93KW 125HP	2350×2020×2350	2000	4
AHLC11/18CY	Two Wheels Two Stage Pression	11/18	Yuchai 110KW 150HP	2350×2020×2350	2480	4
AHLC13/18CY	Two Wheels Two Stage Pression	13/18	Yuchai 140KW 190HP	2600×1700×2400	2600	3
AHLC12/10CY	Four Wheels	12/10	Yuchai 118KW 160HP	2600×1700×2400	2480	3
AHLC550/13CY	Four Wheels	15/13.15/15	Yuchai 140KW 190HP	2600×1700×2400	2600	3
AHLC580/17CY	Four Wheels	17/17	Yuchai 91KW 260HP / Cummins 194KW 260HP	2950×1800×2550	3200	3
AHLC20/8CY	Four Wheels Two Stage Pression	20/8	Cummins 153KW	2600×1700×2400	3000	3
AHLC24/8	Four Wheels Two Stage Pression	24/8	Yuchai 162KW	2950×1800×2550	3100	3
AHLC14/18,17/12CY	Four Wheels / Two Pressure Two Stage Compression	14/18.17/12	Yuchai 140KW 190HP	2600×1700×2400	2600	3
AHLC16/16,18/10CY	Four Wheels / Two Pressure	16/16,18/10	Cummins 154KW 210HP	2600×1700×2400	3000	3
AHLC15/18CY	Four Wheels / Two Pressure	15/18	Cummins 154KW 210HP	2600×1700×2400	3000	3
AHLC15/18,17/13CY	Four Wheels / Two Pressure Two Stage Compression	15/18,17/13	Cummins 154KW 210HP	2600×1700×2400	3000	3
AHLC17/18,18/15CY	Four Wheels / Two Pressure Two Stage Compression	17/18,18/15	Cummins 157KW 220HP	2840×1700×2400	3100	3
AHLC15/21CY	Four Wheels / Two Pressure	15/21	Cummins 157KW 220HP	2840×1700×2400	3100	3
AHLC19/21,21/18CY	Four Wheels / Two Pressure Two Stage Compression	19/21,21/18	Yuchai 191KW 260HP	2950×1800×2550	3200	3
AHLC21/21,23/18	Four Wheels / Two Pressure Two Stage Compression	21/21,23/18	Yuchai 191KW 260HP	2950×1800×2550	3200	3
AHLC31/25	Track Driving Wheel	31/25	Yuchai 295KW 400HP	3950×2050×2600	3500	3
