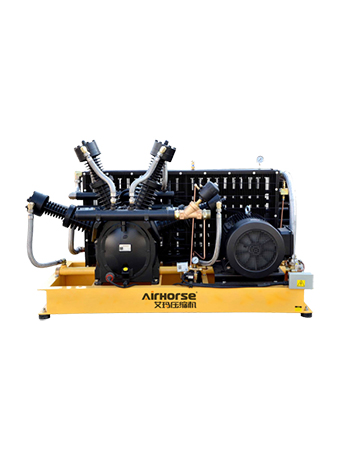

Booster and Medium Pressure Piston Air Compressor

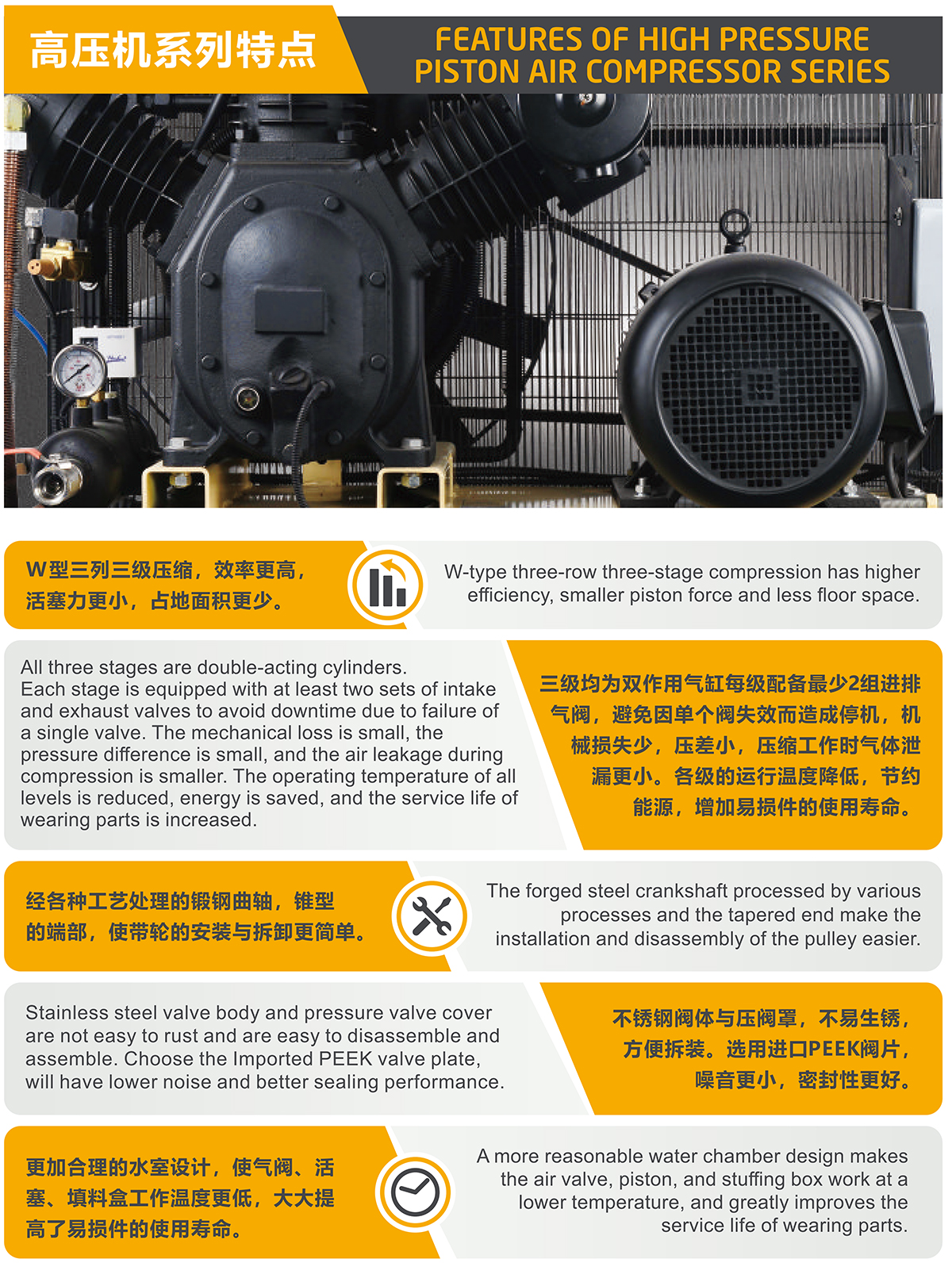

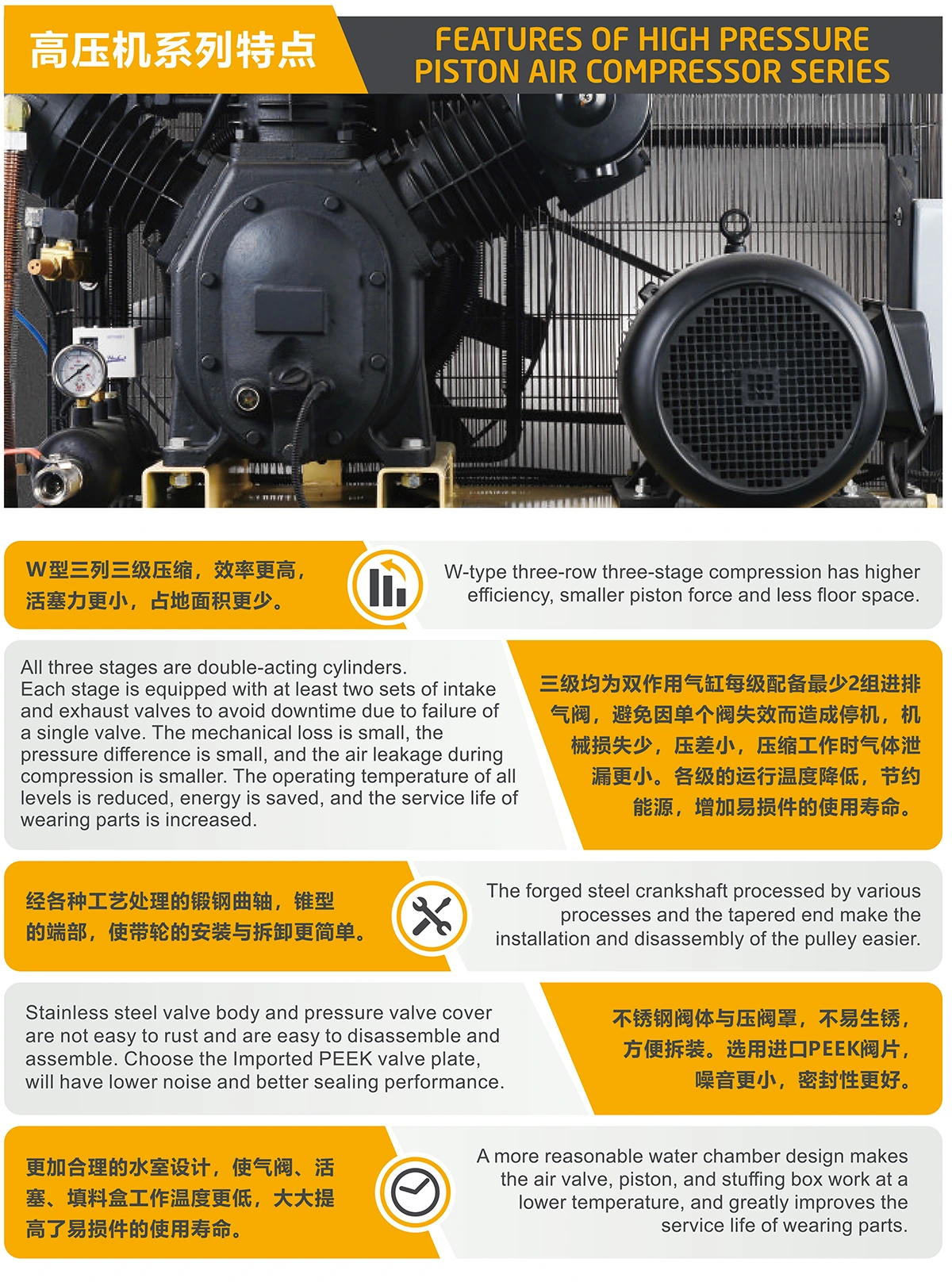

• W-type three-row three-stage compression has higher efficiency, smaller piston force, and less floor space.
• All three stages are double-acting cylinders. Each stage is equipped with at least two sets of intake and exhaust valves to avoid downtime due to the failure of a single valve. The mechanical loss is small, the pressure difference is small, and the air leakage during compression is smaller. The operating temperature of all levels is reduced, energy is saved, and the service life of wearing parts is increased.
• The forged steel crankshaft is processed by various processes and the tapered end makes the installation and disassembly of the pulley easier.
• The stainless steel valve body and pressure valve cover are not easy to rust and are easy to disassemble and assemble. Choose the Imported PEEK valve plate. will have lower noise and better sealing performance.
• A more reasonable water chamber design makes the air valve, piston, and stuffing box work at a lower temperature, and greatly improves the service life of wearing parts.
