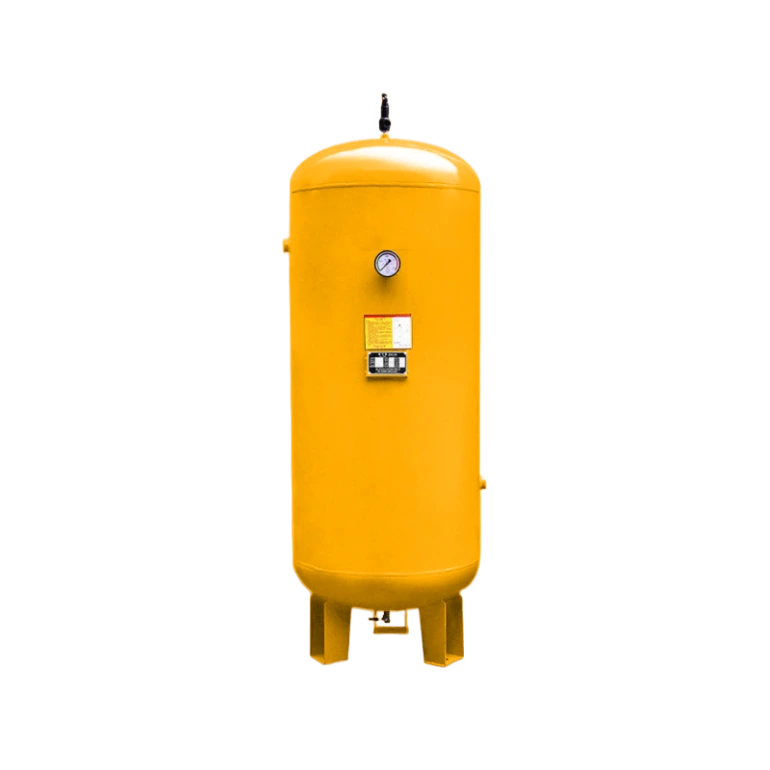

Air Tank

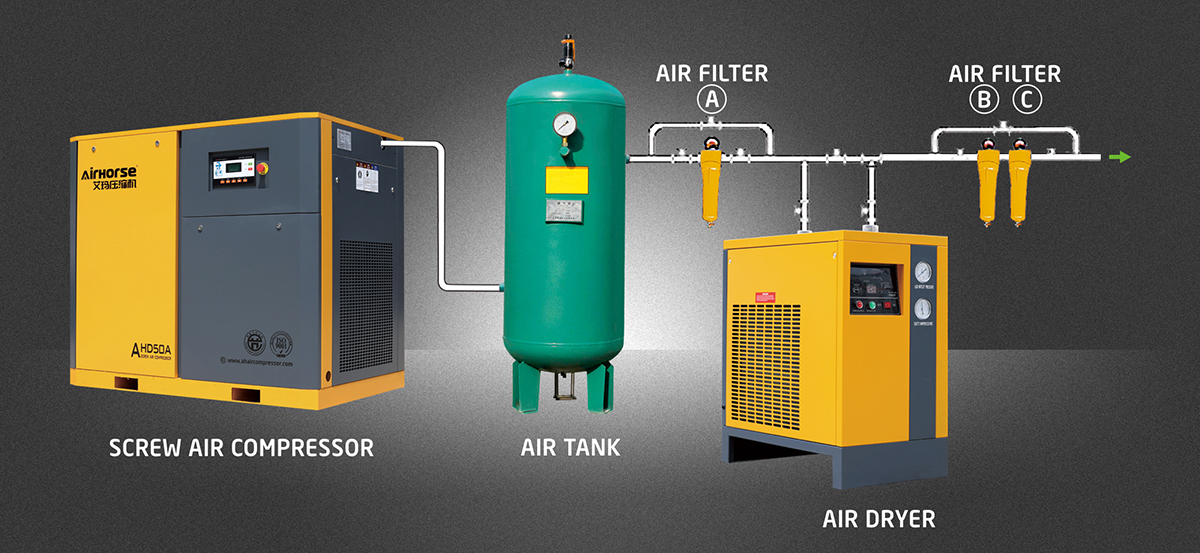

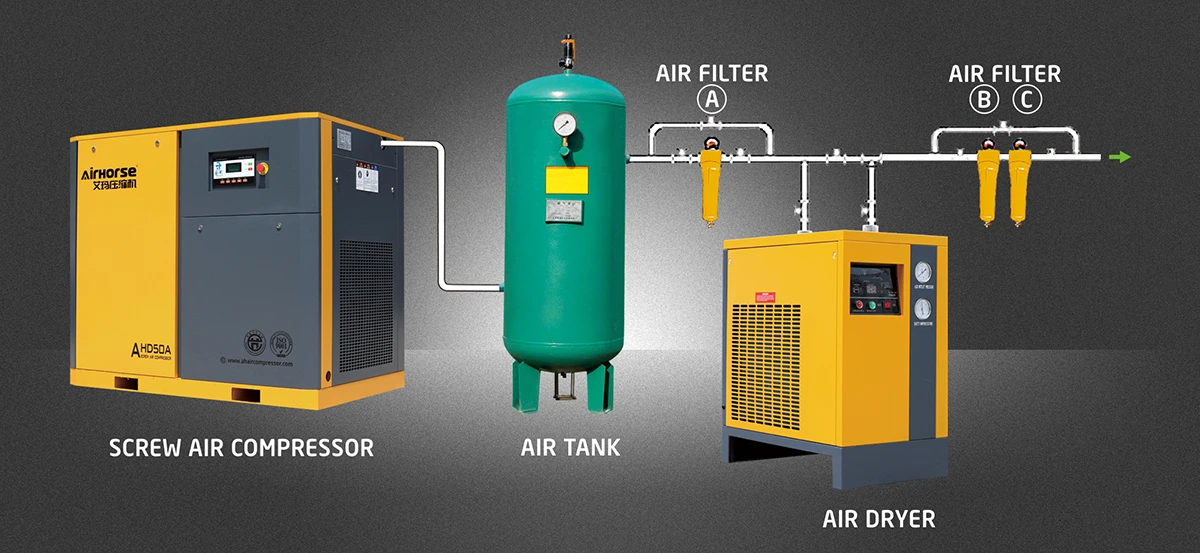

Air tank, also known as a compressed air receiver tank, is an essential component of a compressed air system. It is designed to store compressed air, stabilize system pressure, and reduce the load on compressor equipment, ensuring efficient and reliable operation.
Air receiver tanks are widely used in industrial facilities, automotive workshops, manufacturing plants, and other applications requiring a continuous supply of compressed air. They also help cool the compressed air and remove moisture and condensate from the system.
We offer air tanks in various capacities and pressure ratings to meet modern standards of durability, safety, and performance.
| Air tank/Air receiver | |||||||
| Model | Volume | Pressure | Tall | Diameter | Wall thickness | Interface | Weight |
| （L） | （Mpa） | （mm） | （mm） | （mm） | （KG） | ||
| 0.3/0.8 | 300 | 0.8 | 1582 | 550 | 3.25 | 1.5″ thread | 78 |
| 0.3/1.0 | 300 | 1.0 | 1584 | 550 | 3.75 | 1.5″ thread | 90 |
| 0.3/1.3 | 300 | 1.3 | 1586 | 550 | 4.5 | 1.5″ thread | 104 |
| 0.3/1.5 | 300 | 1.5 | 1800 | 300 | 6 | 1.5″ thread | 145 |
| 0.3/3.0 | 300 | 3.0 | 1582 | 550 | 8 | 2″ thread | 195 |
| 0.6/0.8 | 600 | 0.8 | 2089 | 650 | 3.5 | 1.5″ thread | 143 |
| 0.6/1.0 | 600 | 1.0 | 2089 | 650 | 4.25 | 1.5″ thread | 168 |
| 0.6/1.3 | 600 | 1.3 | 2091 | 650 | 5 | 1.5″ thread | 192 |
| 0.6/1.5 | 600 | 1.5 | 2091 | 650 | 5 | 1.5″ thread | 185 |
| 0.6/3.0 | 600 | 3.0 | 2089 | 650 | 8 | 2″ thread | 295 |
| 1.0/0.8 | 1000 | 0.8 | 2180 | 800 | 4.25 | 1.5″ thread | 209 |
| 1.0/1.0 | 1000 | 1.0 | 2510 | 800 | 4.5 | 1.5″ thread | 219 |
| 1.0/1.3 | 1000 | 1.3 | 2277 | 800 | 5 | 1.5″ thread | 238 |
| 1.0/1.5 | 1000 | 1.5 | 2277 | 800 | 5 | 1.5″ thread | 240 |
| 1.0/1.6 | 1000 | 1.6 | 2277 | 800 | 5 | 1.5″ thread | 285 |
| 1.0/3.0 | 1000 | 3.0 | 2180 | 800 | 10 | 3″ flange | 470 |
| 1.5/0.8 | 1500 | 0.8 | 2360 | 1000 | 6 | 1.5″ thread | 365 |
| 1.5/1.0 | 1500 | 1.0 | 2359 | 1000 | 6 | 1.5″ thread | 310 |
| 1.5/1.3 | 1500 | 1.3 | 2360 | 1000 | 6 | 2″ thread | 365 |
| 2.0/0.8 | 2000 | 0.8 | 2860 | 1000 | 6 | 2″ thread | 370 |
| 2.0/1.0 | 2000 | 1.0 | 2860 | 1000 | 5 | 2″ thread | 381 |
| 2.0/1.3 | 2000 | 1.3 | 2860 | 1000 | 6 | 2″ thread | 440 |
| 3.0/0.8 | 3000 | 0.8 | 2660 | 1200 | 5 | 3″ flange | 500 |
| 3.0/1.0 | 3000 | 1.0 | 3012 | 1200 | 5 | 3″ flange | 5.5 |
| 3.0/1.3 | 3000 | 1.3 | 3014 | 1200 | 6 | 3″ flange | 590 |
| 4.0/0.8 | 4000 | 0.8 | 3075 | 1400 | 5 | 3″ flange | 600 |
| 4.0/1.0 | 4000 | 1.0 | 3076 | 1400 | 6 | 3″ flange | 700 |
| 4.0/1.3 | 4000 | 1.3 | 3080 | 1400 | 8 | 3″ flange | 910 |
| 5.0/0.8 | 5000 | 0.8 | 3154 | 1500 | 5 | 3″ flange | 685 |
| 5.0/1.0 | 5000 | 1.0 | 3154 | 1500 | 6 | 3″ flange | 800 |
| 5.0/1.3 | 5000 | 1.3 | 3154 | 1500 | 8 | 3″ flange | 1030 |
