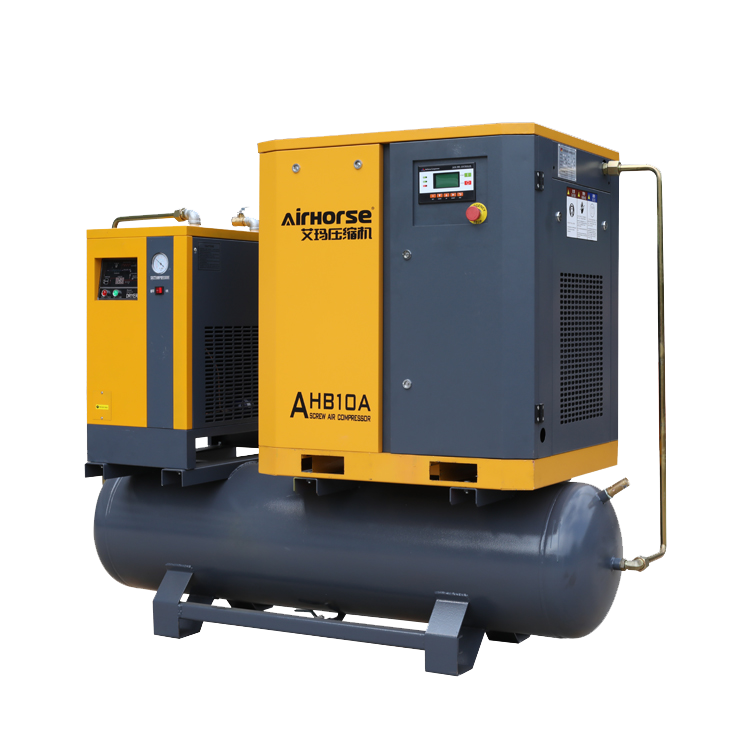

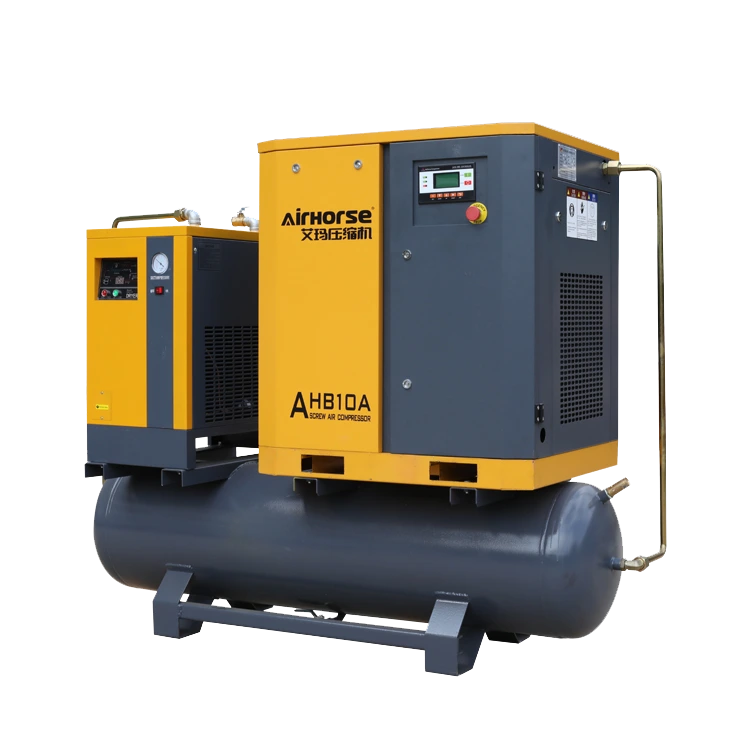

Tank, Dryer mounted Screw Compressor

  • The tank-mounted air compressor includes an integrated refrigerated air dryer and an air receiver that provides a quiet continuous working air compressor option for small and medium-sized businesses with integrated air storage. Refrigerated air dryers cool air before storing it in tanks to remove moisture from the air and prevent rust or damage to your equipment. The gas receivers provide backup power for large air demands, act as a buffer between the compressor and your equipment, and reduce the constant circulation of the compressor by keeping the tank ready to use.
Inquire Now
Product Details
Technical Parameters
Catalogue Download

Tank and Dryer Mounted Screw Air Compressor (3-in-1 type)
Model Motor power Free air delivery Free air delivery Discharge pressure Tank volume Electricity Weight Size
(KW) (HP) (m³/min) (CFM) (MPa) (L) (V/hp/Hz) (KG) (mm)
AHB-7A 5.5 7.5 0.75 27 0.8 300 300/3/50 410 1900*700*1300
AHB-10A 7.5 10 1.1 39 0.8 300 380/3/50 425 1900*730*1520
AHB-15A 11 15 1.5 53 0.8 300 380/3/50 475 1900*700*1630
AHB-20A 15 20 2.3 81 0.8 500 380/3/50 540 2000*800*1800
Tank, Dryer mounted Screw Compressor
Download
