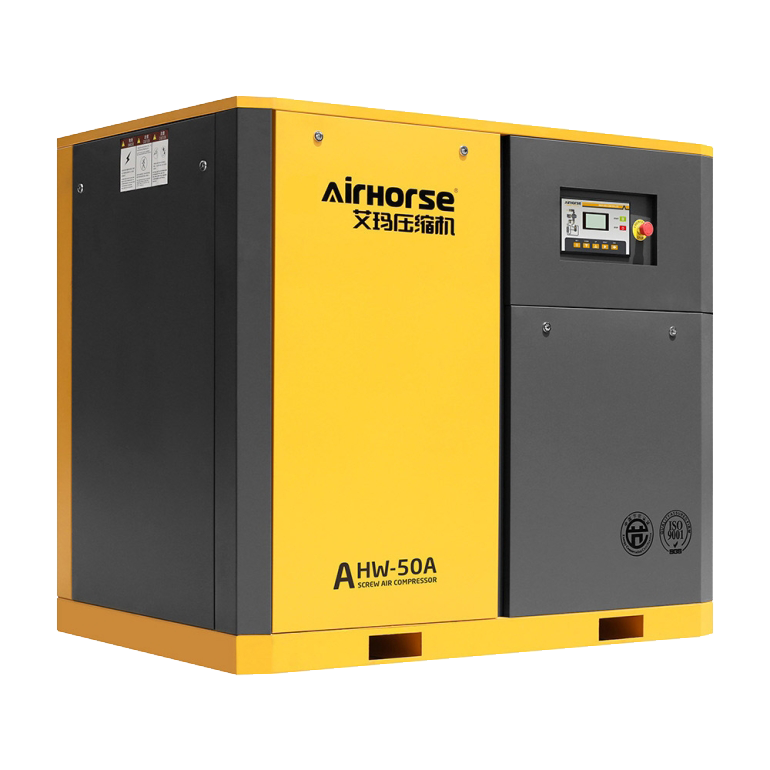

Oil-free Air Compressor
- Large Displacement
- Low Noise
- High Efficiency
- No Pollution To The Environment Purer Compressed Air
- Oil-free ISO8573 Class 0 Air Quality Standard
- Self Lubricating Bearing
- Low-Temperature Compression (Similar Ambient Temperature)
- Oil-free Stainless Steel Rotor
- Continuously Stable Running
Inquire Now
Share:
Product Details
Technical Parameters
Catalogue Download
| DRY OIL-FREE SCREW AIR COMPRESSOR TECHNICAL PARAMETER LIST | ||||||
| Model | Pressure | Air Flow | Motor Power | Outlet Size | Dimension | Net Weight |
| (MPa) | (m³/min) | (Kw) | (inch) | L*W*H (mm) | (KG) | |
| AY-55A/W-D(AM) | 0.7 | 8.9 | 55 | DN65 | 3000*1600*1700 | 3050 |
| 0.8 | 8.3 | |||||
| 1.0 | 7.6 | |||||
| AY-75A/W-D(-AM) | 0.7 | 13 | 75 | DN65 | 3000*1600*1700 | 3300 |
| 0.8 | 12.1 | |||||
| 1.0 | 11.8 | |||||
| AY-9OA/W-D(-AM) | 0.7 | 15.4 | 90 | DN65 | 3000*1600*1700 | 3600 |
| 0.8 | 14.6 | |||||
| 1.0 | 13.8 | |||||
| AY-110A/W-D(-AM) | 0.7 | 20 | 110 | DN80 | 3750*1700*2000 | 4050 |
| 0.8 | 19 | |||||
| 1.0 | 15.9 | |||||
| AY-132A/W-D(-AM) | 0.7 | 21.9 | 132 | DN80 | 3750*1700*2000 | 4500 |
| 0.8 | 21.2 | |||||
| 1.0 | 19 | |||||
| AY-145A/W-D(AM) | 0.7 | 23.4 | 145 | DN80 | 3750*1700*2000 | 5200 |
| 0.8 | 22.8 | |||||
| 1.0 | 20.2 | |||||
| AY-160A/W-D(AM) | 0.7 | 29.4 | 160 | DN100 | 4100*2000*2100 | 3650 |
| 0.8 | 27.1 | |||||
| 1.0 | 25.1 | |||||
| AY-200A/W-D(-AM) | 0.7 | 37.9 | 200 | DN100 | 4100*2000*2100 | 7000 |
| 0.8 | 34.5 | |||||
| 1.0 | 31.1 | |||||
| AY-250 W-D(-AM) | 0.7 | 45.4 | 250 | DN125 | 4250*2000*2100 | 7550 |
| 0.8 | 43.1 | |||||
| 1.0 | 38.9 | |||||
| AY-280 W-D(-AM) | 0.7 | 48.6 | 280 | DN125 | 4250*2000*2100 | 8000 |
| 0.8 | 45.2 | |||||
| 1.0 | 42.5 | |||||
| AY-300 W-D(-F) | 0.7 | 49.5 | 300 | DN125 | 4400*2200*2250 | 9000 |
| 0.8 | 46.1 | |||||
| 1.0 | 43.3 | |||||
| AY-315 W-D(F) | 0.7 | 53.3 | 315 | DN125 | 4400*2200*2250 | 9350 |
| 0.8 | 49.1 | |||||
| 1.0 | 46.8 | |||||
| AY-355 WD(-F) | 0.7 | 59.2 | 355 | DN125 | 4400*2200*2250 | 9850 |
| 0.8 | 54.7 | |||||
| 1.0 | 51.5 | |||||
| AY-400 W-D(-F) | 0.7 | 65.6 | 400 | DN150 | 4550*2200*2250 | 10500 |
| 0.8 | 60.5 | |||||
| 1.0 | 57.1 | |||||
| AY-425 W-D(-F) | 0.7 | 74 | 425 | DN150 | 4550*2000*2250 | 1090 |
| 0.8 | 68.2 | |||||
| 1.0 | 62.1 | |||||
Oil-free Air Compressor
